SineCore CNC

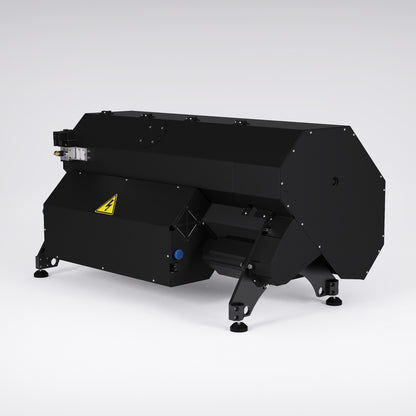

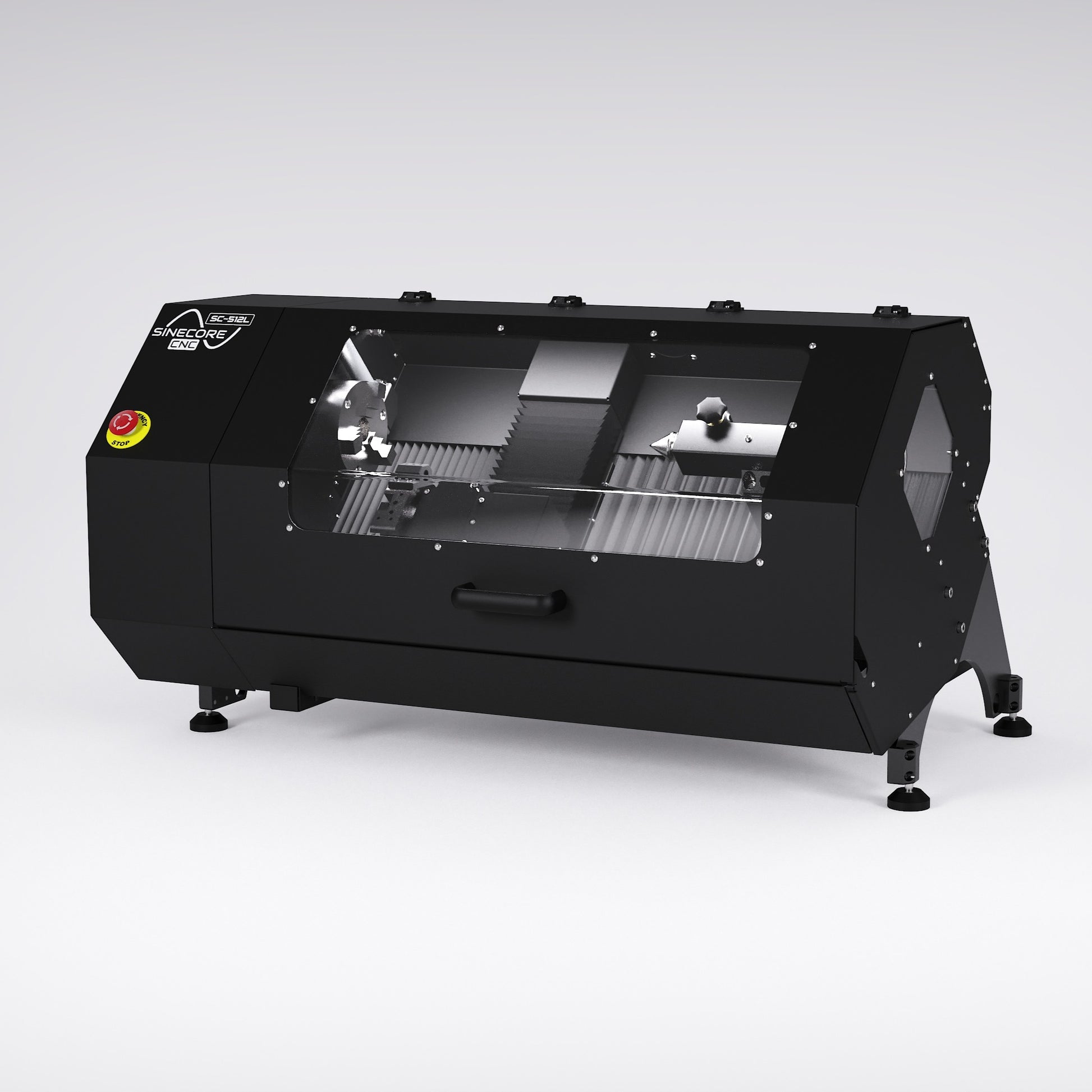

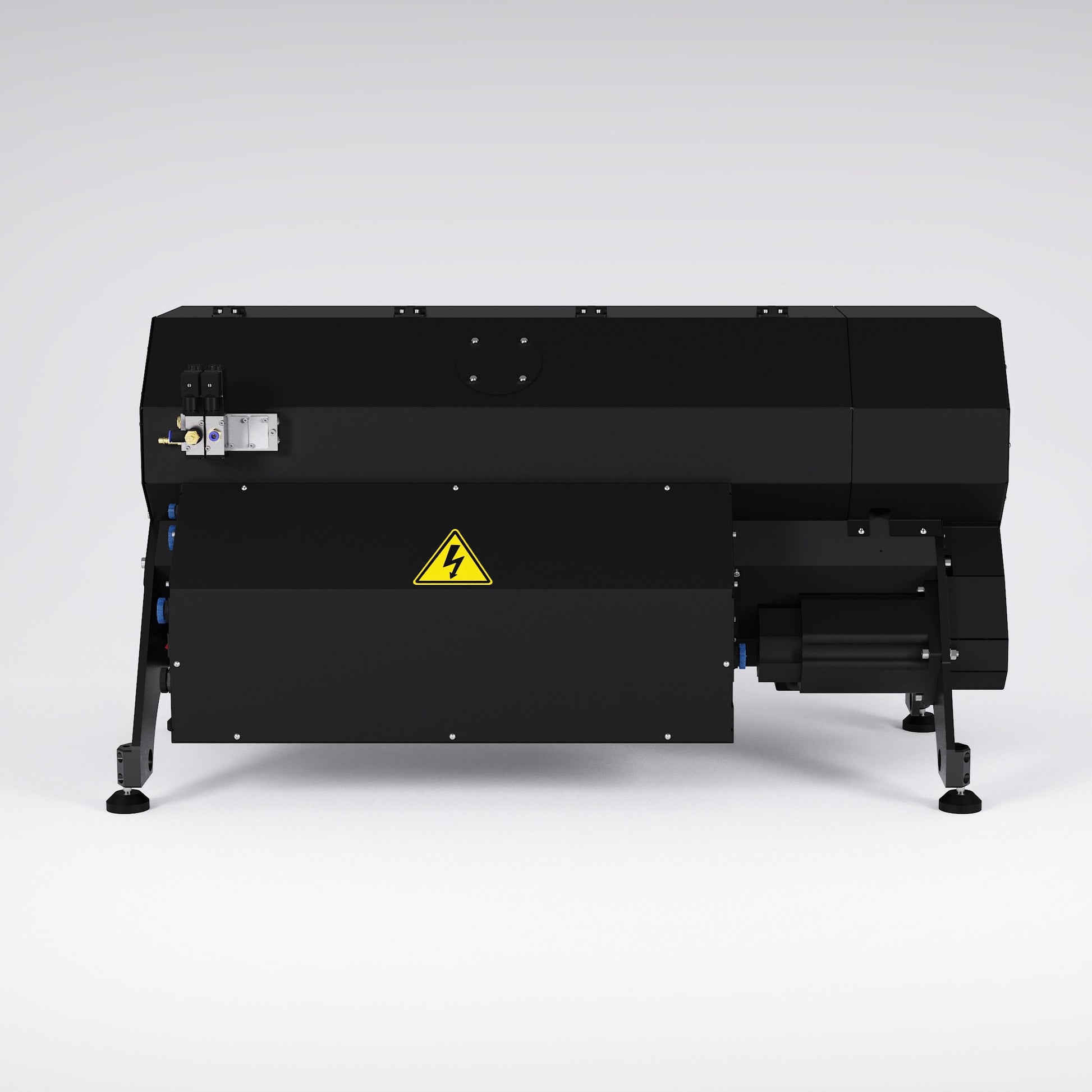

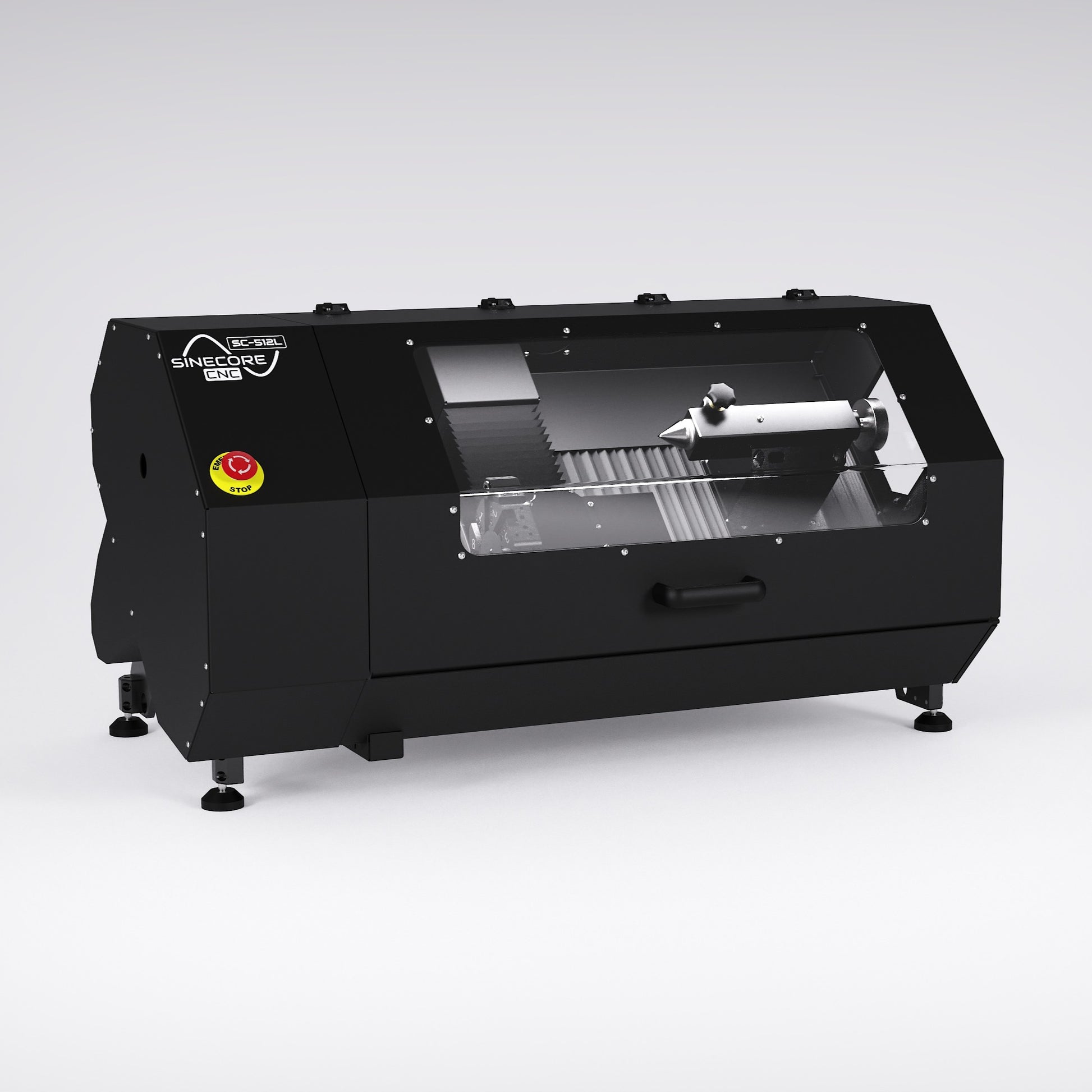

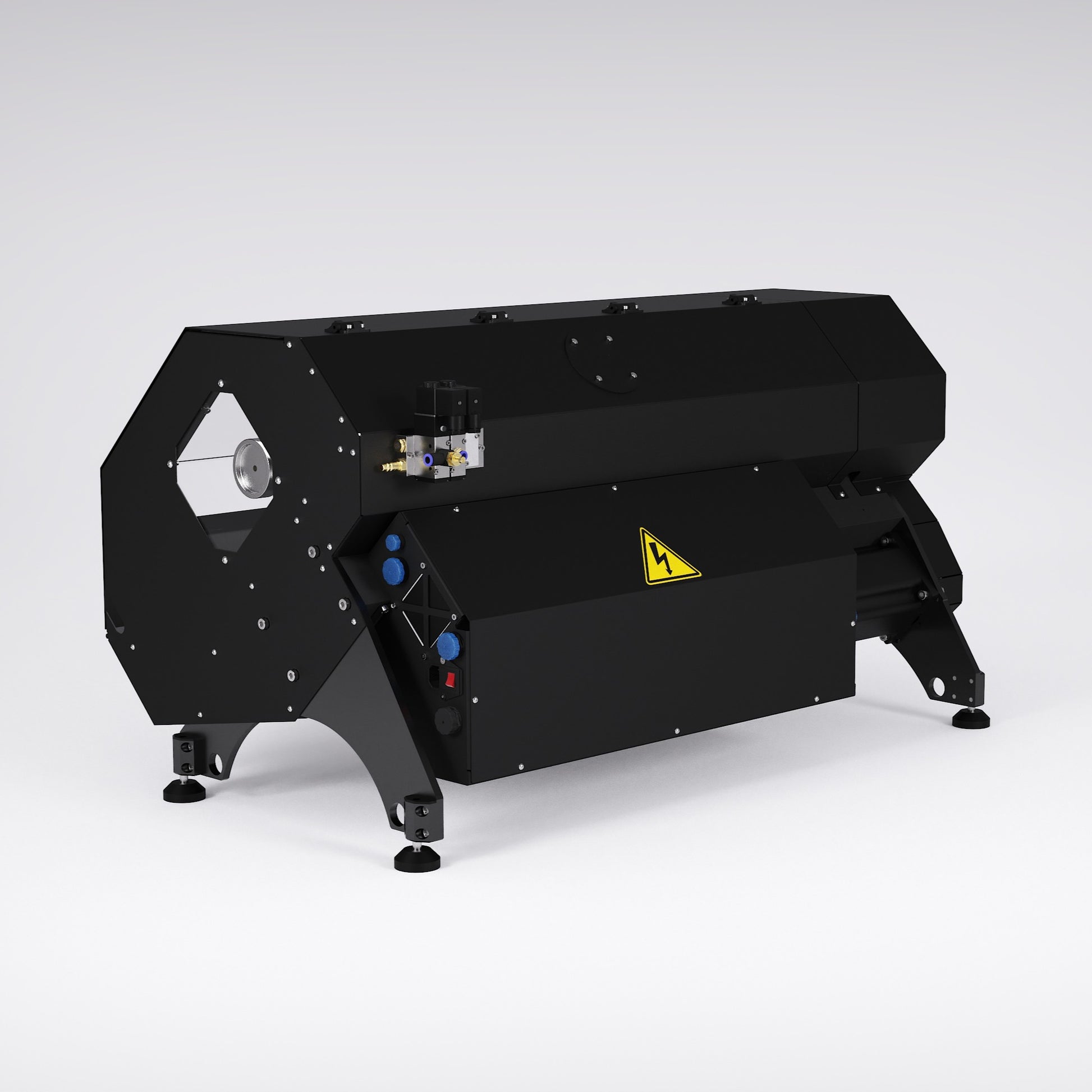

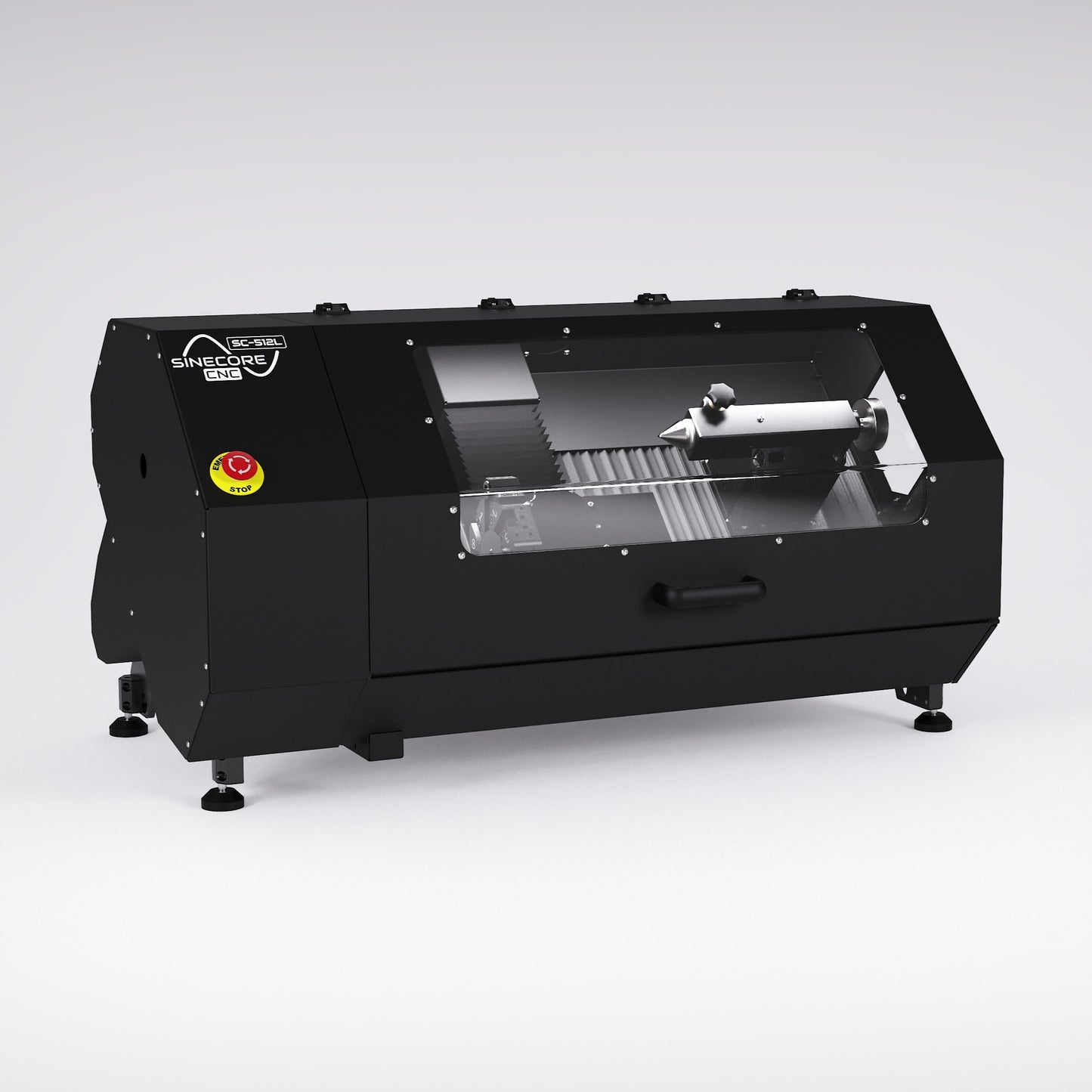

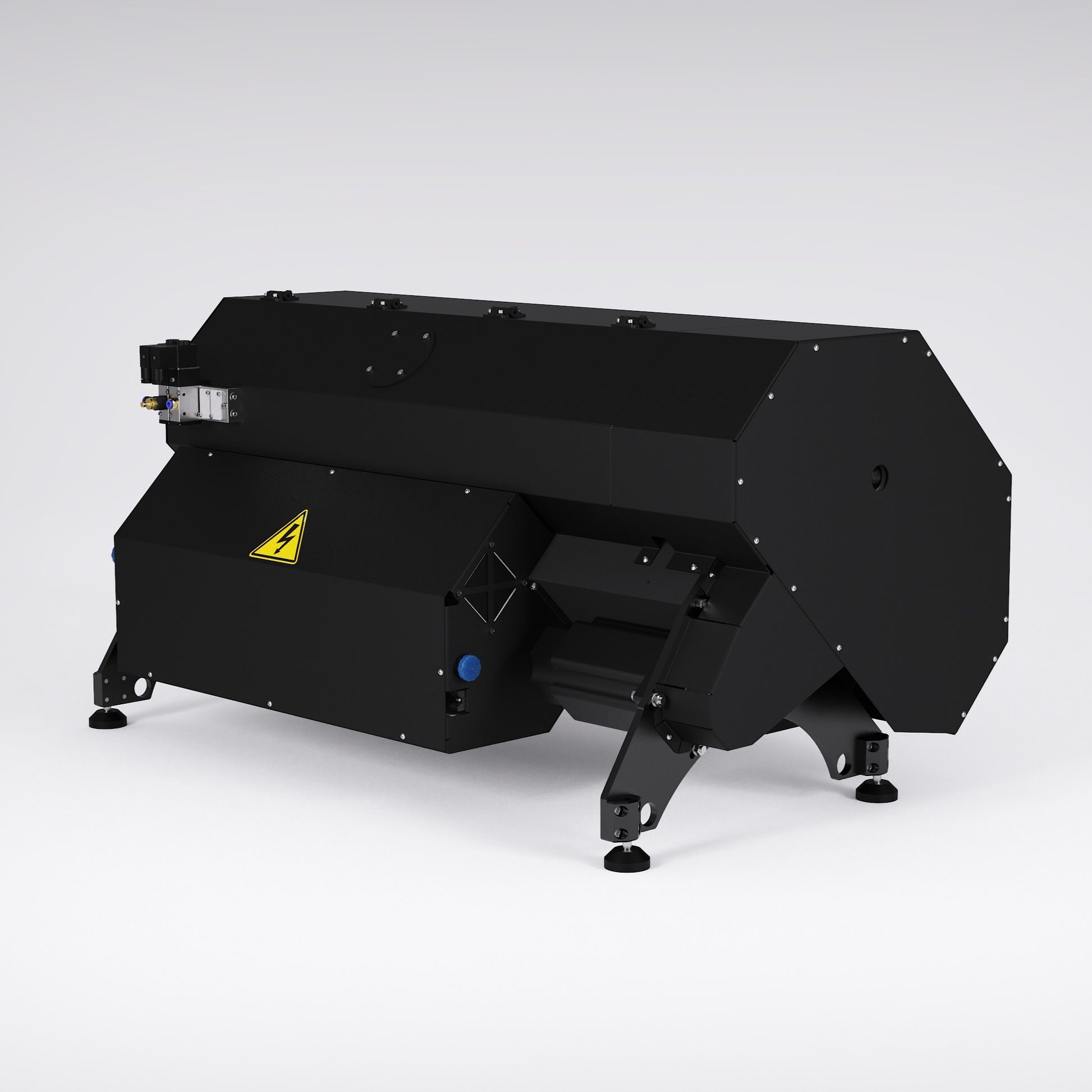

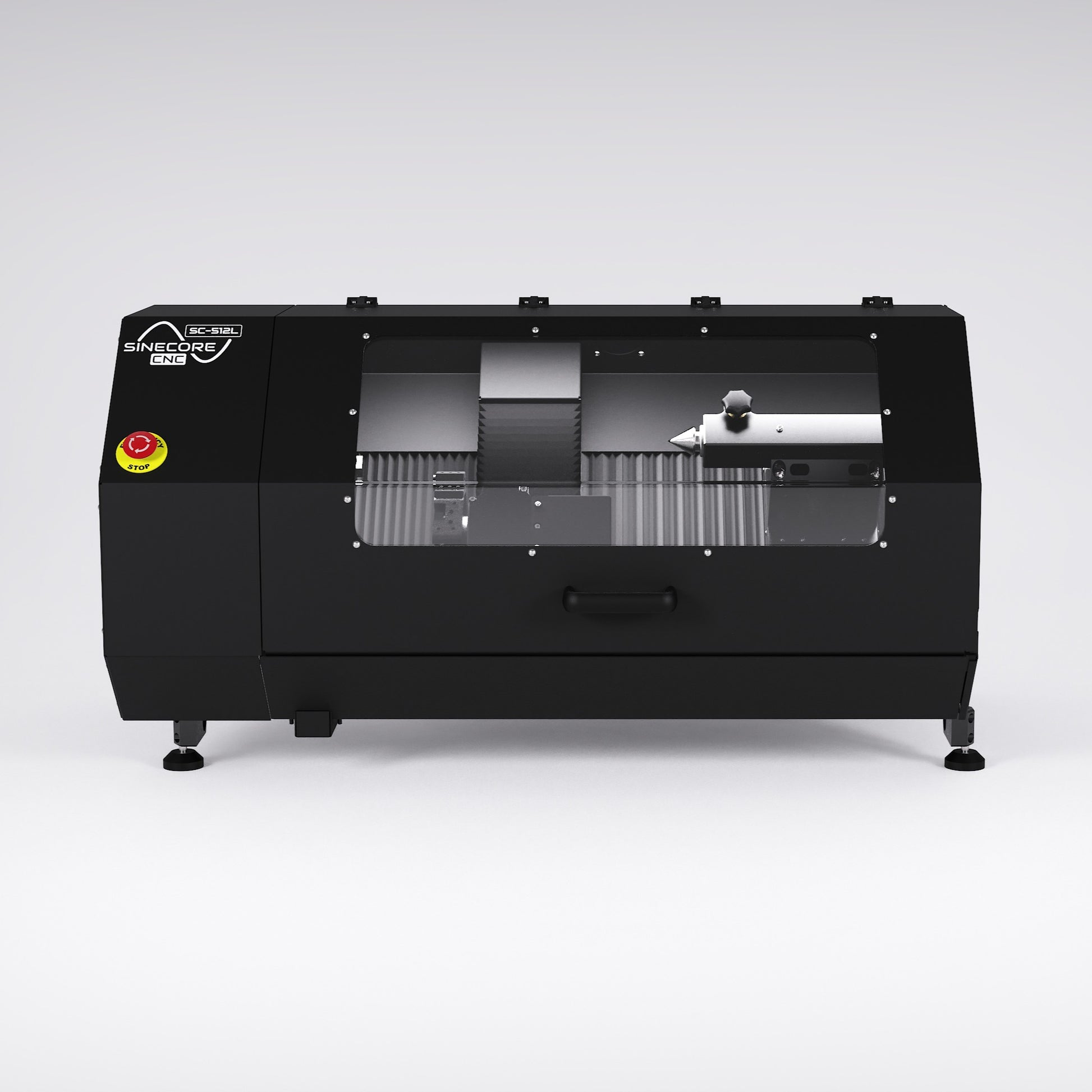

SC-512L Desktop CNC Lathe

SC-512L Desktop CNC Lathe

$8,899.00 USD
$8,899.00 USD
Sale Sold out
Package
Preorder
Full payment
Full payment at checkout
Orders begin shipping: February 2027
U.S. Orders: Free shipping. Sales tax, if applicable, is collected before shipment.
International Orders: Shipping is collected separately before shipment. Canada shipping is a flat $400. Customers outside the USA or Canada can contact support@sinecorecnc.com to order. DHL collects applicable VAT, duties, or import taxes directly.
View full details

Bring CNC turning to your workbench. The SC-512L combines a 1,200W spindle, precision linear rails, and ball-screw axes in a compact benchtop design. Its tailored MachElite interface puts setup and machining controls within easy reach.

Machine Only

CNC turning essentials with a quick-change manual tool post. A straightforward setup for prototypes and custom parts.

Pro Package

Automatic tool changes, live tooling, and the complete Pro accessory package for turning, drilling, milling, and engraving.

Save $1,050 with the Pro Package $8,899 bundled vs. $9,949 when purchased separately.

See Package Details below to compare included equipment.

Overall Dimensions
Complete machine size for layout planning, clearance, and workspace fit.
Overall Dimensions
Footprint Dimensions
Base contact dimensions for bench placement, support, and mounting layout.
Footprint Dimensions

Package Details

Whats Included?

Included Equipment Machine
Only		 Pro
Package
SC-512L CNC lathe Included Included
MachElite software license Included Included
Power cord & Ethernet cable Included Included
5" 3-jaw chuck Included Included
Quick-change tool post Includes (2) manual tool holders Included Included
8-station automatic tool changer Includes (2) 1/2" ID holders and 1/4" & 3/8" sleeves Not included Included
24,000 RPM live tool spindle Includes CW-3000 chiller Not included Included
Flood coolant system Not included Included
Tailstock Not included Included
Tool touch probe Not included Included
Jog pendant Not included Included

Requirements

Computer Requirements

  • Intel Core i5 processor or better
  • 8 GB RAM minimum
  • Windows 11 recommended
  • Available Ethernet port for machine communication

Required Utilities

  • Power:
    • 220-240V AC single-phase power
    • OR standard 110-120V outlet when used with a plug-and-play step-up transformer
  • 90 PSI compressed air for automatic tool changes
  • If using the live tool spindle:
    • 60 PSI minimum air pressure
    • 4.5 CFM recommended for extended cutting operations

Shipping & Delivery

Shipping & Delivery

  • Machine ships fully assembled and tested
  • Typically ships next business day when in stock
  • Hassle-free freight shipping. We take care of the logistics and shipping arrangements
  • Residential delivery available
  • Lift gate service available
  • Crate dimensions: 41" × 49" × 30"
  • Approximate shipping weight: 475 lbs (Pro Package) / 365 lbs (Machine Only)

Tech Specs

SC-512L Key Specifications

The numbers that matter most, at a glance.

Work Envelope & Build

Work capacity and mechanical foundation.

Max Swing Over Bed
9.25 in 235 mm
Swing Over Cross Slide
5.118 in 130 mm
Max Part Length (Tailstock)
14.75 in 375 mm
Through Spindle Bore
1.02 in 26 mm
Chuck Diameter
5.00 in 127 mm
Max Machining Length
10.75 in 273 mm
Approx. Weight
275 lbs 125 kg
Overall Dimensions (L×W×H)
42.05×26.18×22.60 in 1068×665×574 mm
Footprint (Center-to-Center)
38.46×16.65 in 977×423 mm
Leveling Feet Diameter
1.97 in 50 mm

Performance & Power

Speed, drive system, and power requirements.

Main Spindle Motor
1200 W
Max Spindle Speed
3000 RPM
Live Tool Motor
800 W
Live Tool Speed
24,000 RPM
Rapid Traverse (X/Z)
196.8 in/min 5000 mm/min
Drive System
Closed-Loop Steppers
Frame Construction
Solid Aluminum Base Steel Enclosure
Linear Motion
Linear Rails Precision Ball Screws
Voltage
220V 110V w/ add-on*
Connection
Ethernet USB†

Precision & Capability

Accuracy plus the features that expand capability.

Positioning Accuracy
0.0002-0.0008 in 0.005-0.020 mm
Repeatability
0.0002-0.0008 in 0.005-0.020 mm
Tool Probe Accuracy
0.0008 in 0.02 mm
Automatic Tool Changer
8 Positions
Collet System
5C Compatible
Live Tool Collet
ER11
Tailstock Taper
MT2
Control Software
Mach Elite

* 110V requires plug-n-play step-up transformer (sold separately).
†USB requires USB-to-Ethernet adapter.

MATERIAL CAPABILITY

Cut What Your Projects Demand

From forgiving materials to demanding alloys, the SC-512L delivers controlled torque, rigidity, and precision across a wide range of metals and plastics, without outgrowing your workspace.

Hard Materials

Hard Materials

Built for real cutting loads.

The SC-512L is engineered to handle tougher materials with confidence. Precision linear rails, ball screws, and a rigid spindle platform allow you to machine steel, stainless, tool steel, and titanium while maintaining accuracy and repeatability.

  • Mild & alloy steels
  • Stainless steel
  • Tool steel
  • Titanium
  • Rigid cutting performance up to 3000 RPM
Soft Materials

Soft Materials

Smooth finishes. Clean cuts. Total control.

Whether you're machining wood, plastics, aluminum, or brass, the SC-512L provides stable spindle control and rigid axis movement for clean surface finishes and consistent dimensions. Ideal for prototypes, custom parts, fixtures, and production components where detail matters.

  • Wood & engineered composites
  • Plastics (Delrin, Nylon, Acrylic)
  • Aluminum alloys
  • Brass & non-ferrous metals
  • Excellent surface finish control
Hard Materials

Hard Materials

Built for real cutting loads.

The SC-512L is engineered to handle tougher materials with confidence. Precision linear rails, ball screws, and a rigid spindle platform allow you to machine steel, stainless, tool steel, and titanium while maintaining accuracy and repeatability.

  • Mild & alloy steels
  • Stainless steel
  • Tool steel
  • Titanium
  • Rigid cutting performance up to 3000 RPM
Soft Materials

Soft Materials

Smooth finishes. Clean cuts. Total control.

Whether you're machining wood, plastics, aluminum, or brass, the SC-512L provides stable spindle control and rigid axis movement for clean surface finishes and consistent dimensions. Ideal for prototypes, custom parts, fixtures, and production components where detail matters.

  • Wood & engineered composites
  • Plastics (Delrin, Nylon, Acrylic)
  • Aluminum alloys
  • Brass & non-ferrous metals
  • Excellent surface finish control
View on YouTube

Compact Size.

Full Control.

From plastics to hardened alloys, performance comes down to control. The SC-512L combines rigidity, precision motion, and consistent torque delivery in a compact platform built for serious machining.

See the Complete CNC Workflow

comparison

Engineered to Outperform

Side-by-side specs that show where the SC-512L stands apart.

Specification
SC-512L
Others
X Travel
7.000" (178mm)
4.2500" (110mm)
Z Travel
14.7500" (375mm)
12.5000" (320mm)
Max Swing Diameter
9.843" (250mm)
6.000" (152mm)
Swing Over Cross Slide
5.000" (127mm)
---
Spindle Power
1200 Watts
800 Watts
Positioning Resolution
0.000118" (0.003mm) - Adjustable
.0008" (.02mm) - Fixed
Rapid Feedrate
196.8in/min (5000mm/min)
39.37in/min (1000mm/min)
Max Spindle RPM
3000
3000
Through Spindle Bore
1.0236 in (26 mm)
0.4724 in (12 mm)
