Desktop CNC Lathe for Small-Batch Production: Practical Uses and Setup

Yes. A desktop CNC lathe can handle small-batch production when the part, tooling, and workflow fit the machine. The useful question is what it takes to turn your stock into finished parts repeatedly: setup, cutting, loading, inspection, and any second operation.

At SineCore CNC, we've made brass chess pieces, replacement bolts, and reworked existing parts on the SC-512L. Customers have also told us about making wooden duck-call bodies and custom trumpet mouthpieces. Those are different jobs, but they show why a small CNC lathe can be useful beyond a one-off prototype.

What makes a part a good fit for small-batch CNC turning?

Start with the features you need to machine. Outside profiles, bores, faces, and threads are natural reasons to consider a lathe. Then work through how you'll hold the stock and reach each feature with a cutting tool.

A part that fits inside the machine may still need a second setup. You might have to turn it around to finish the back, change how it's held, or move it to another machine for a separate operation. Those steps belong in the production plan from the beginning.

• Repeat parts: Can you use the same program, tools, and locating surfaces for the next piece?
• Custom variations: Can the design change while much of the setup stays useful?
• Rework: Can you locate an existing part reliably and machine the feature that needs correction?

For a small business, the value may be a recurring product, a repair job, or an operation you want to bring onto your own production floor. Each deserves a closer look than simply asking how many parts the machine can make per day.

Real SC-512L examples

Wooden duck-call bodies

One customer reported using the SC-512L with its automatic tool changer to make wooden duck-call bodies repeatedly. The work he described was the main body of the call. For a maker considering CNC, that is a useful place to start: identify the repeated turning work within the product, then plan the other operations around it.

Custom trumpet mouthpieces

Another customer told us about using the lathe for custom trumpet mouthpieces, tailoring individual pieces to what the buyer wanted. This is a different kind of small-batch work: the ability to make a variation can matter as much as making an identical part again.

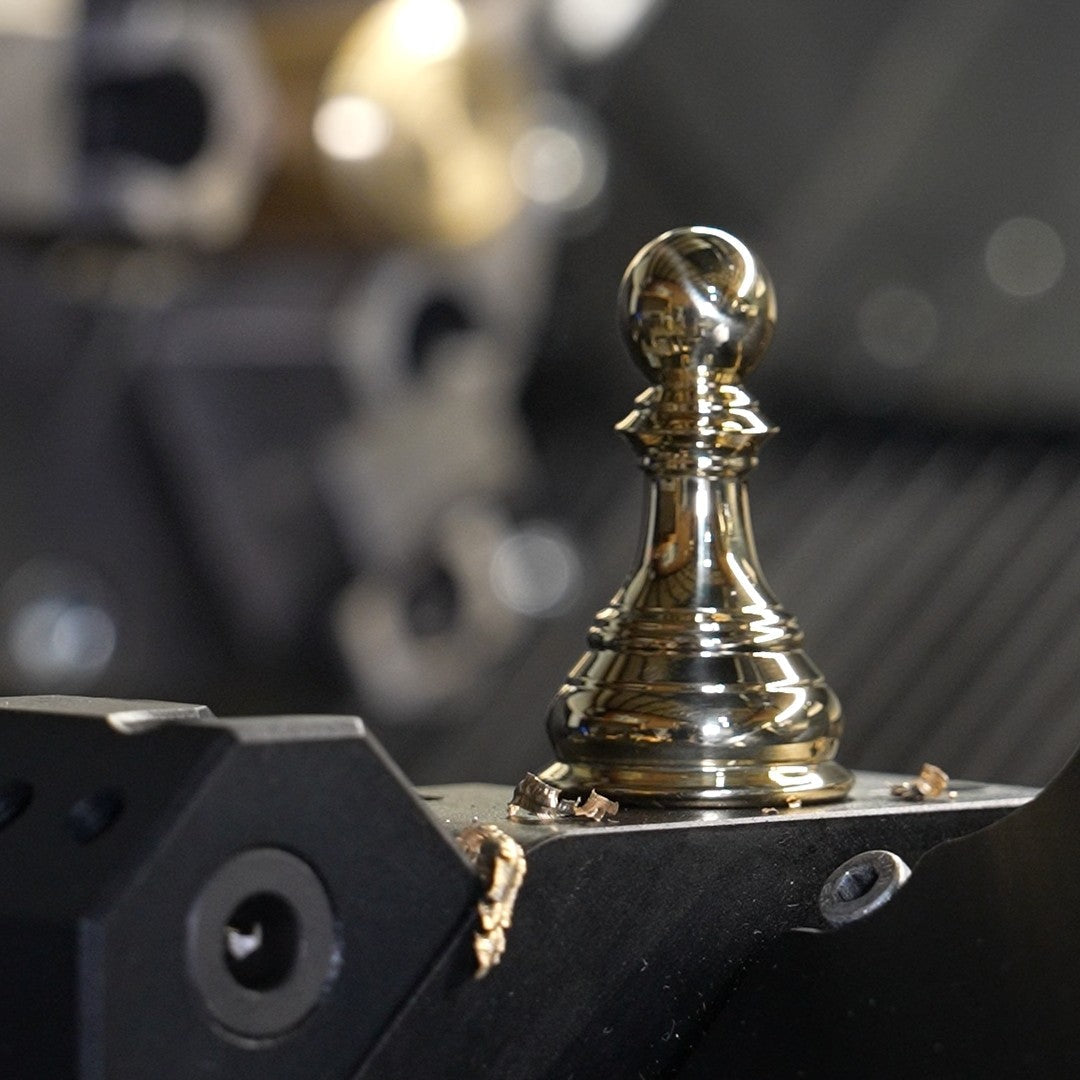

Brass chess pieces

One of our own examples is a brass pawn. Our estimate for that particular job is about 90 seconds from raw stock to a finished pawn. That gives a concrete example of a short job on the lathe, but it isn't a measured production rate for a full shift.

When planning a batch, account for stock preparation, part handling, and inspection as well as the programmed machining sequence.

Replacement parts and rework

We've also made bolts when we didn't have the part we needed, and used the lathe to rework existing parts. A straightforward rework job can need only a short, hand-written program and ordinary turning or boring tools.

Workholding makes a difference here. We've used soft jaws to provide a repeatable locating surface. Once the setup and program are established, the next part can follow the same process. The first piece still needs measuring before you commit to the rest of the batch.

What does an automatic tool changer do for production?

An automatic tool changer lets a prepared program move between tools without the operator changing each one by hand. On a job with several tools, that removes an interruption between operations.

It doesn't remove every task between parts. The operator still needs to collect the finished piece, load or advance stock as the setup requires, carry out the planned checks, and start the next cycle. Deburring or a second operation may also remain.

Automatic tool changes and automatic part loading are different things. When you evaluate a benchtop CNC lathe for production, look at the complete workflow rather than treating the cutting cycle as the whole job.

The SC-512L Pro Package includes an eight-station ATC. The Machine Only configuration uses a quick-change manual tool post. Both include a MachElite software license. The Pro Package also includes live tooling, but the live tool and ATC are alternative setups and cannot be used at the same time.

You can compare the SC-512L configurations and included equipment against the operations your part needs.

Plan the batch around the first good part

Before estimating output, establish a part you can inspect and accept. Our process is straightforward: program it, cut it, measure it, and adjust when needed. For finer measurements we use micrometers; calipers serve less demanding checks.

1. Prepare the setup. Establish the workholding, tools, tool offsets, and work offset for the job.
2. Make and inspect the first part. Check the drawing's requirements before running the rest.
3. Record the complete sequence. Include loading, machining, unloading, inspection, and any additional operation.
4. Run a short batch. Use the actual results to refine your time estimate and inspection plan.

Keep setup time separate from time spent on each part. A longer setup may be worthwhile for a repeat order, while a very small quantity may favor a simpler process. There isn't one batch size that makes CNC the right answer for every shop.

Check material, tool access, and workshop space

Our own machining work has included wood, aluminum, brass, mild steel, stainless steel, and 4140 pre-hard steel. Those are examples of materials we've cut, not a single set of cutting conditions that applies to every alloy or part.

For your job, identify the material and its condition, the features to be machined, and how the stock will be supported. Tool access and workholding deserve as much attention as spindle power.

A desktop machine also needs a practical place to work. Plan room for the operator, stock, finished parts, measuring tools, computer, and the equipment required by your configuration. Review the SC-512L specifications and the product page's installation requirements, then consider toolholding and workholding options for the actual part.

Could your next batch fit on the SC-512L?

Start with your part's dimensions, material, required operations, and intended quantity. Compare those needs with the machine and its configurations. If you're unsure about a particular application, contact SineCore CNC with the details.
