SC-512L Technical Specifications

Everything you need to plan, compare, and build with confidence.

Shop Now

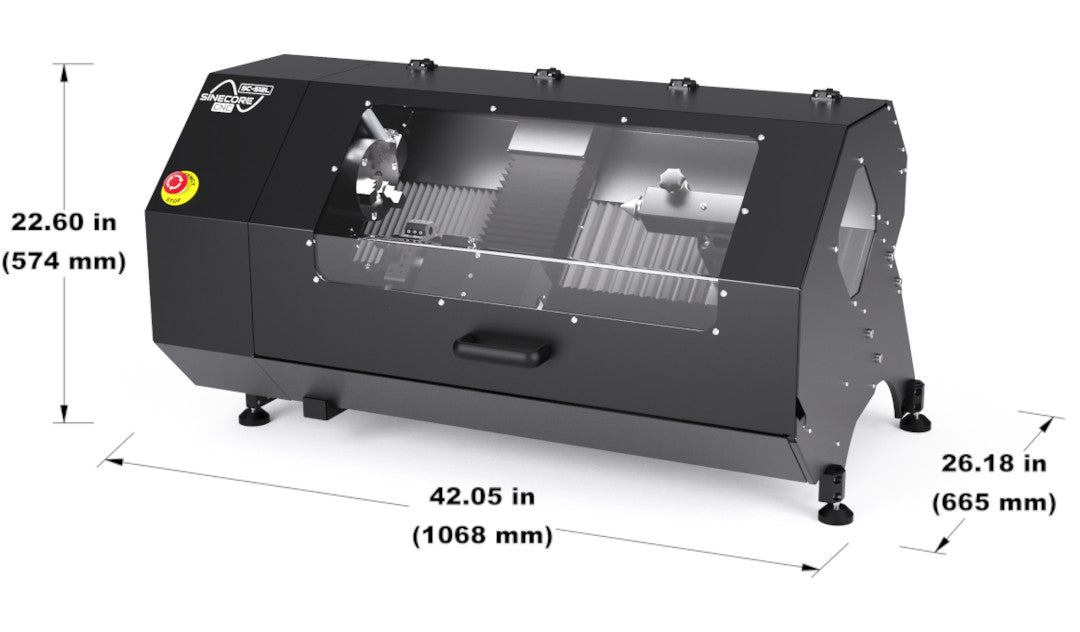

Overall Dimensions
Complete machine size for layout planning, clearance, and workspace fit.
Overall Dimensions

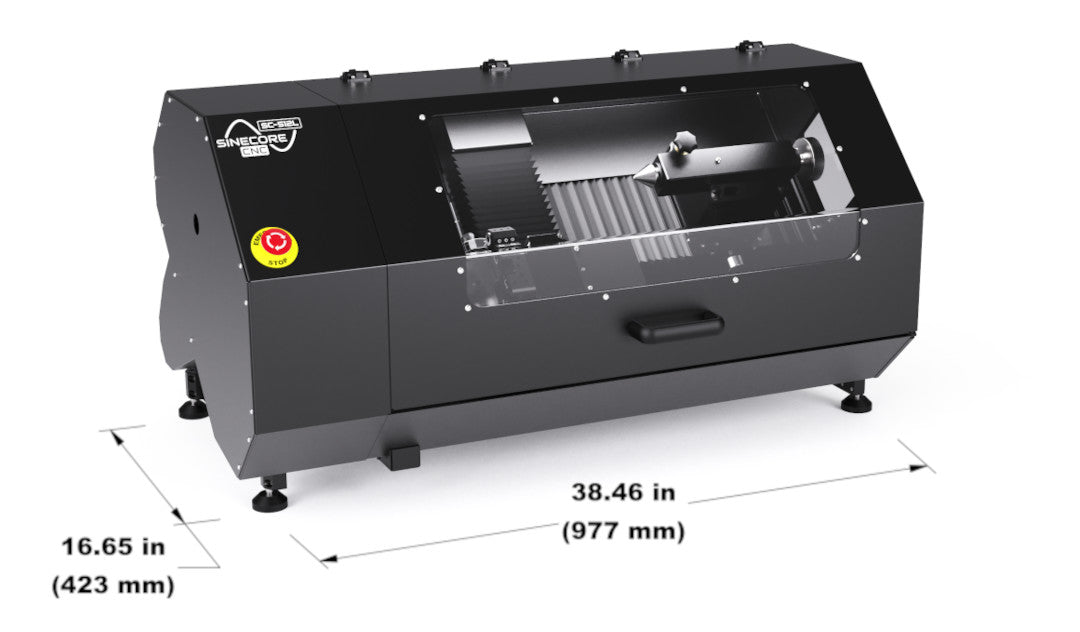

Footprint Dimensions
Base contact dimensions for bench placement, support, and mounting layout.
Footprint Dimensions

Tech Specs

SC-512L Key Specifications

The numbers that matter most, at a glance.

Work Envelope & Build

Work capacity and mechanical foundation.

Max Swing Over Bed
9.25 in 235 mm
Swing Over Cross Slide
5.118 in 130 mm
Max Part Length (Tailstock)
14.75 in 375 mm
Through Spindle Bore
1.02 in 26 mm
Chuck Diameter
5.00 in 127 mm
Max Machining Length
10.75 in 273 mm
Overall Dimensions (L×W×H)
42.05×26.18×22.60 in 1068×665×574 mm
Footprint (Center-to-Center)
38.46×16.65 in 977×423 mm
Leveling Feet Diameter
1.97 in 50 mm

Performance & Power

Speed, drive system, and power requirements.

Main Spindle Motor
1200 W
Max Spindle Speed
3000 RPM
Live Tool Motor
800 W
Live Tool Speed
24,000 RPM
Rapid Traverse (X/Z)
157.5 in/min 4000 mm/min
Drive System
Closed-Loop Steppers
Frame Construction
Solid Aluminum Base Steel Enclosure
Linear Motion
Linear Rails Precision Ball Screws
Voltage
220V 110V w/ add-on*
Connection
Ethernet USB†

Precision & Capability

Accuracy plus the features that expand capability.

Positioning Accuracy
0.0002-0.0008 in 0.005-0.020 mm
Repeatability
0.0002-0.0008 in 0.005-0.020 mm
Tool Probe Accuracy
0.0008 in 0.02 mm
Automatic Tool Changer
8 Positions
Collet System
5C Compatible
Live Tool Collet
ER11
Tailstock Taper
MT2
Control Software
Mach Pro

* 110V requires plug-n-play step-up transformer (sold separately).
†USB requires USB-to-Ethernet adapter.

MATERIAL CAPABILITY

Cut What Your Projects Demand

From forgiving materials to demanding alloys, the SC-512L delivers controlled torque, rigidity, and precision across a wide range of metals and plastics, without outgrowing your workspace.

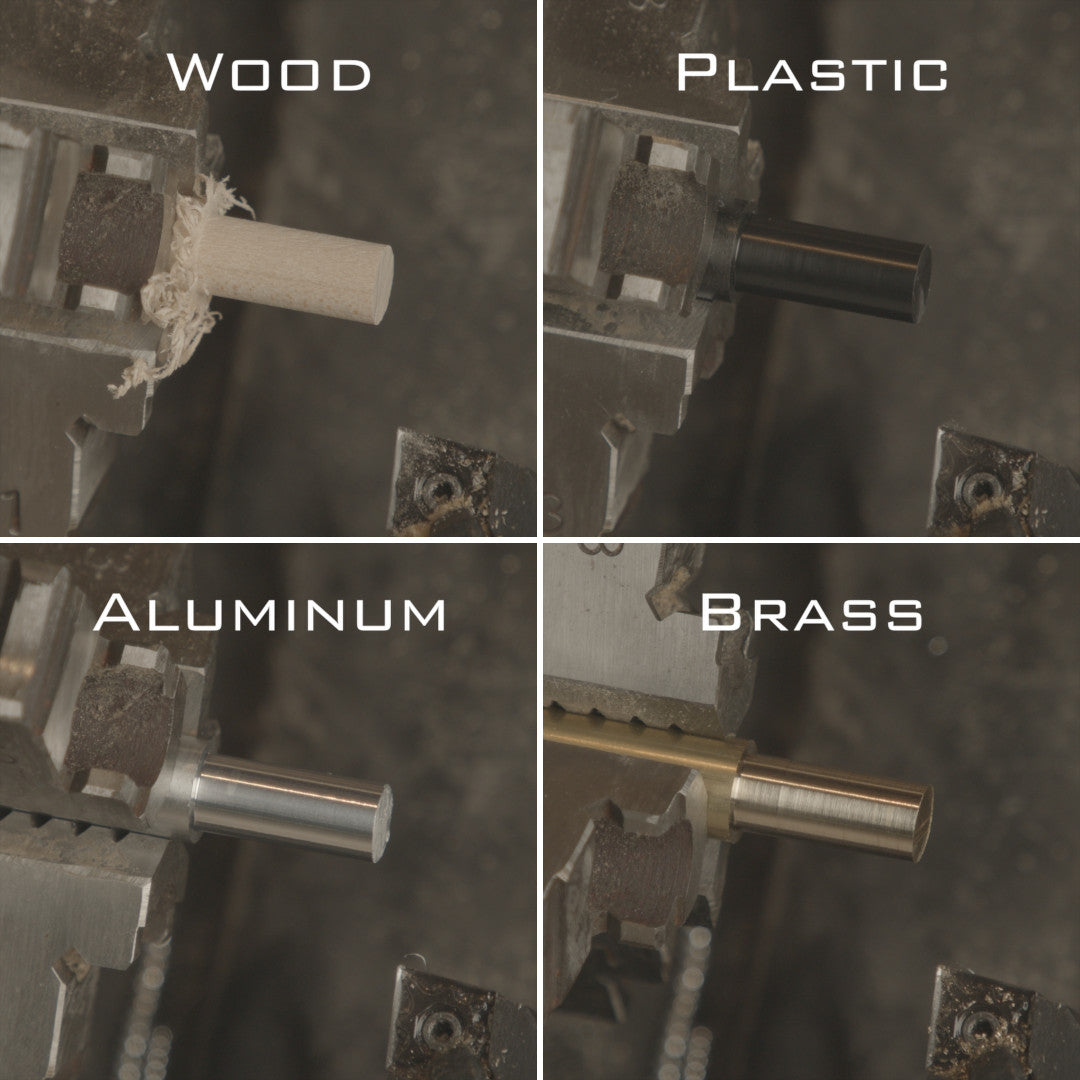

Soft Materials

Soft Materials

Smooth finishes. Clean cuts. Total control.

Whether you're machining wood, plastics, aluminum, or brass, the SC-512L provides stable spindle control and rigid axis movement for clean surface finishes and consistent dimensions. Ideal for prototypes, custom parts, fixtures, and production components where detail matters.

  • Wood & engineered composites
  • Plastics (Delrin, Nylon, Acrylic)
  • Aluminum alloys
  • Brass & non-ferrous metals
  • Excellent surface finish control

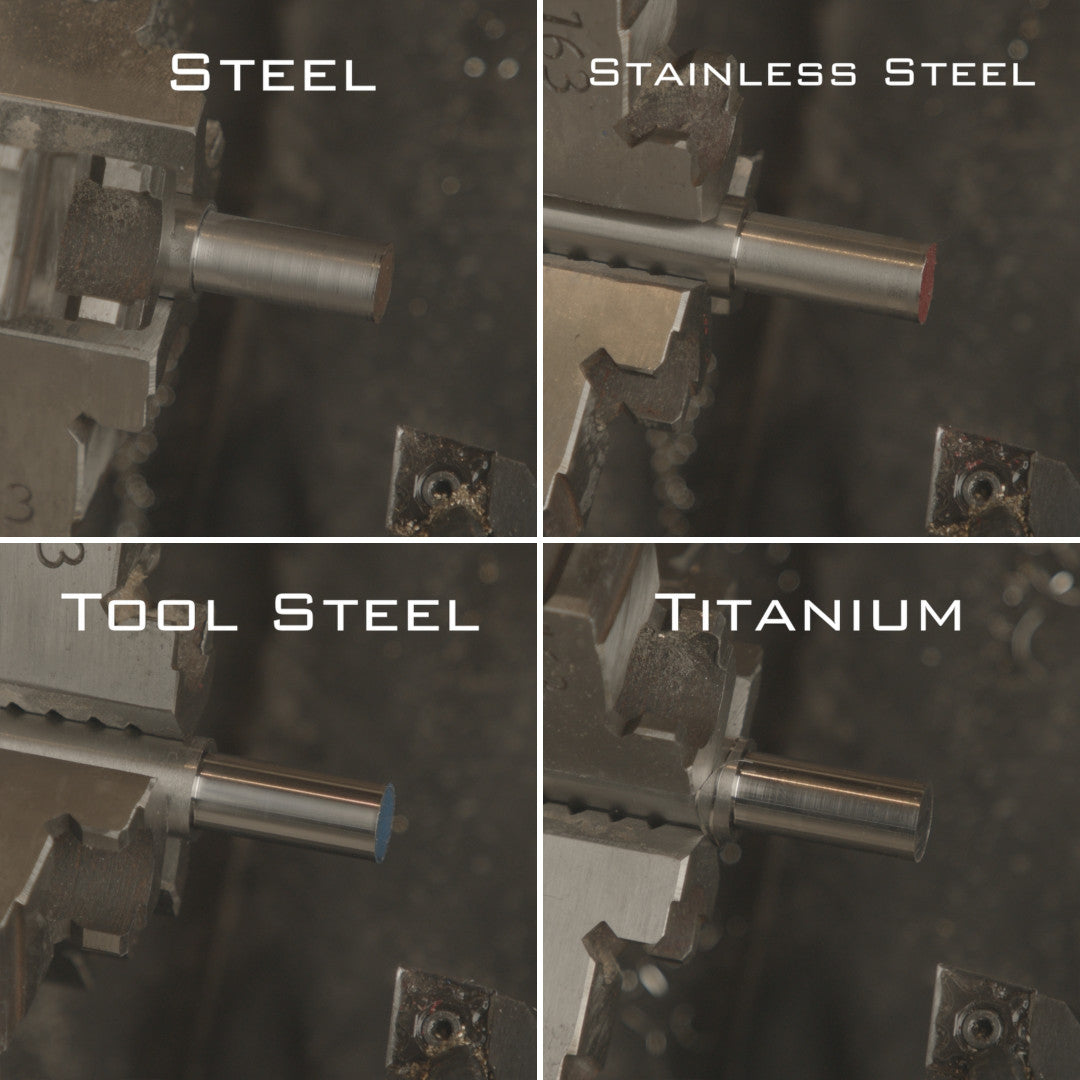

Hard Materials

Hard Materials

Built for real cutting loads.

The SC-512L is engineered to handle tougher materials with confidence. Precision linear rails, ball screws, and a rigid spindle platform allow you to machine steel, stainless, tool steel, and titanium while maintaining accuracy and repeatability.

  • Mild & alloy steels
  • Stainless steel
  • Tool steel
  • Titanium
  • Rigid cutting performance up to 3000 RPM
Soft Materials

Soft Materials

Smooth finishes. Clean cuts. Total control.

Whether you're machining wood, plastics, aluminum, or brass, the SC-512L provides stable spindle control and rigid axis movement for clean surface finishes and consistent dimensions. Ideal for prototypes, custom parts, fixtures, and production components where detail matters.

  • Wood & engineered composites
  • Plastics (Delrin, Nylon, Acrylic)
  • Aluminum alloys
  • Brass & non-ferrous metals
  • Excellent surface finish control
Hard Materials

Hard Materials

Built for real cutting loads.

The SC-512L is engineered to handle tougher materials with confidence. Precision linear rails, ball screws, and a rigid spindle platform allow you to machine steel, stainless, tool steel, and titanium while maintaining accuracy and repeatability.

  • Mild & alloy steels
  • Stainless steel
  • Tool steel
  • Titanium
  • Rigid cutting performance up to 3000 RPM
View on YouTube

Compact Size.

Full Control.

From plastics to hardened alloys, performance comes down to control. The SC-512L combines rigidity, precision motion, and consistent torque delivery in a compact platform built for serious machining.

comparison

Engineered to Outperform

Side-by-side specs that show where the SC-512L stands apart.

Specification
SC-512L
Others
X Travel
7.000" (178mm)
4.2500" (110mm)
Z Travel
14.7500" (375mm)
12.5000" (320mm)
Max Swing Diameter
9.843" (250mm)
6.000" (152mm)
Swing Over Cross Slide
5.000" (127mm)
---
Spindle Power
1200 Watts
800 Watts
Positioning Resolution
0.000118" (0.003mm) - Adjustable
.0008" (.02mm) - Fixed
Rapid Feedrate
196.8in/min (5000mm/min)
39.37in/min (1000mm/min)
Max Spindle RPM
3000
3000
Through Spindle Bore
1.0236 in (26 mm)
0.4724 in (12 mm)
